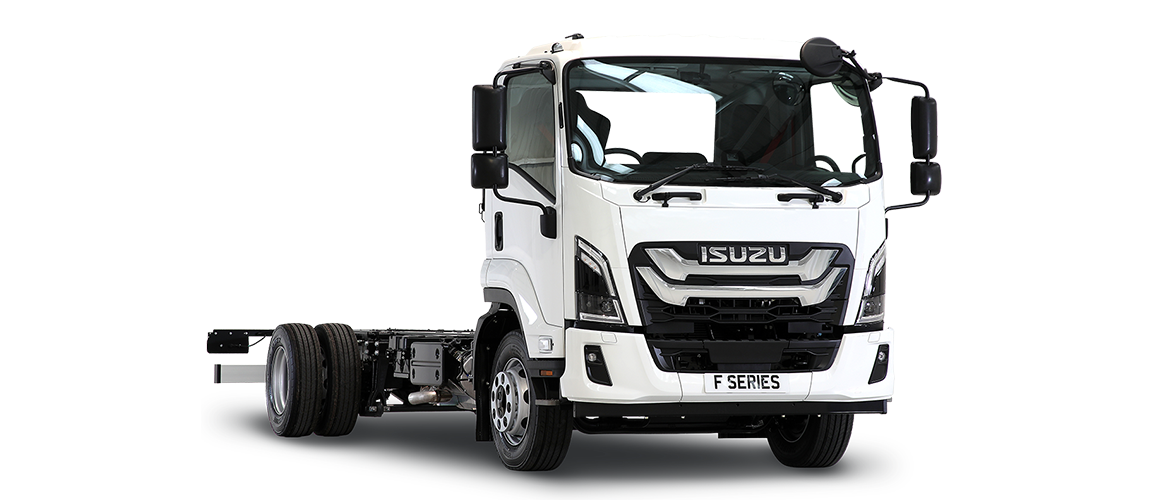

P Level F135 Air Front Angled 68

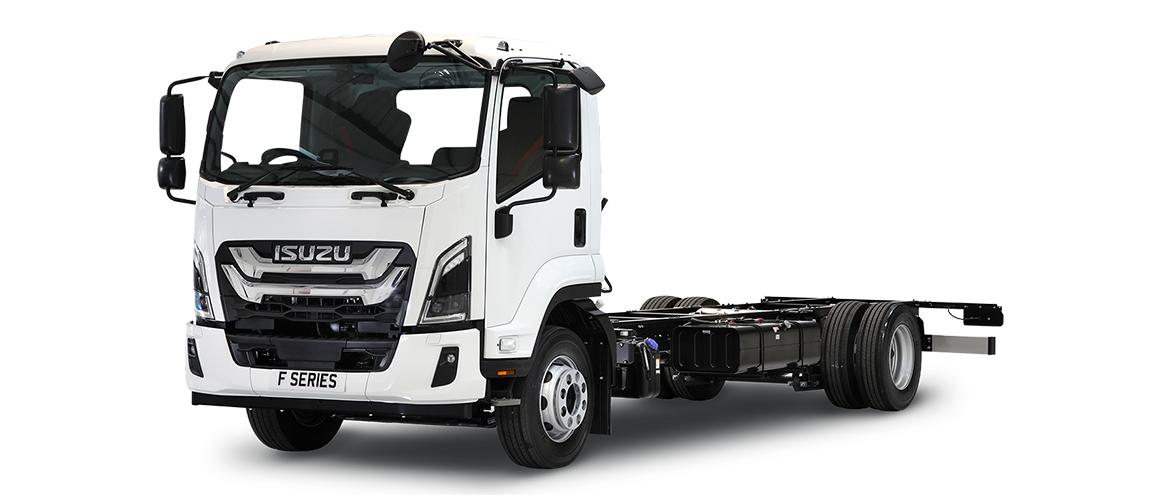

P Level F135 AIR Front Angled 25
P Level F135 AIR Front 64

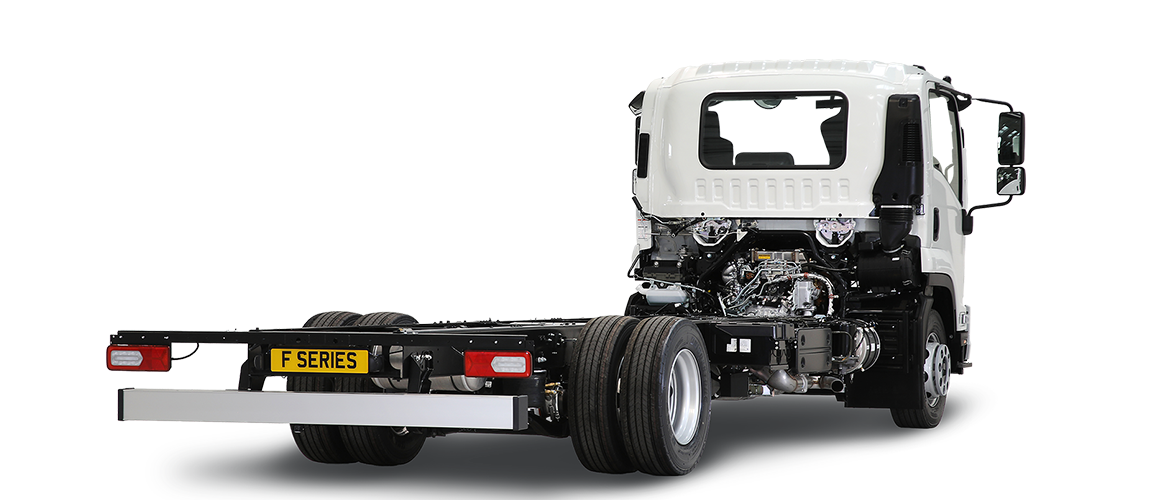

P Level F135 AIR Rear Angled 73

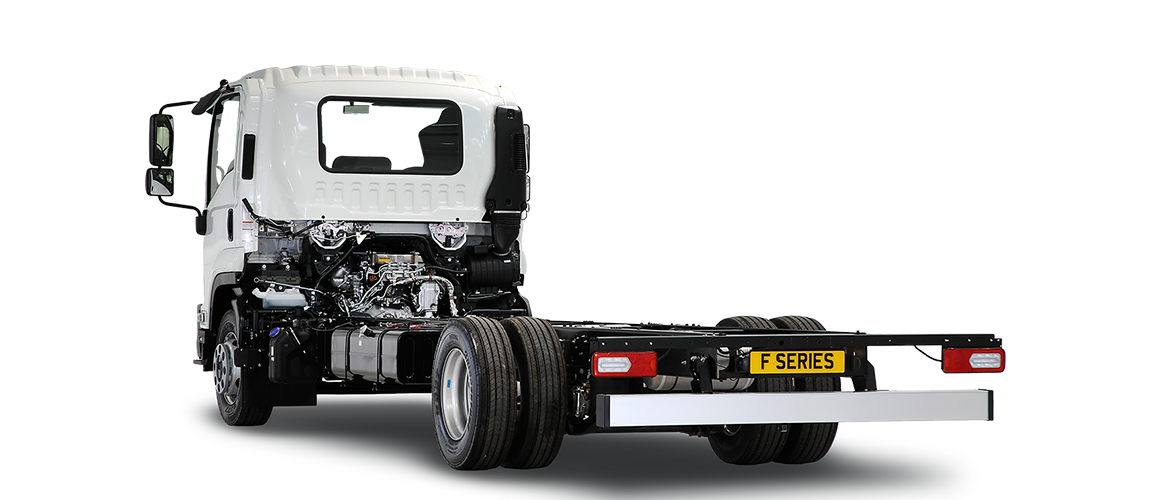

P Level F135 AIR Rear Angled 76

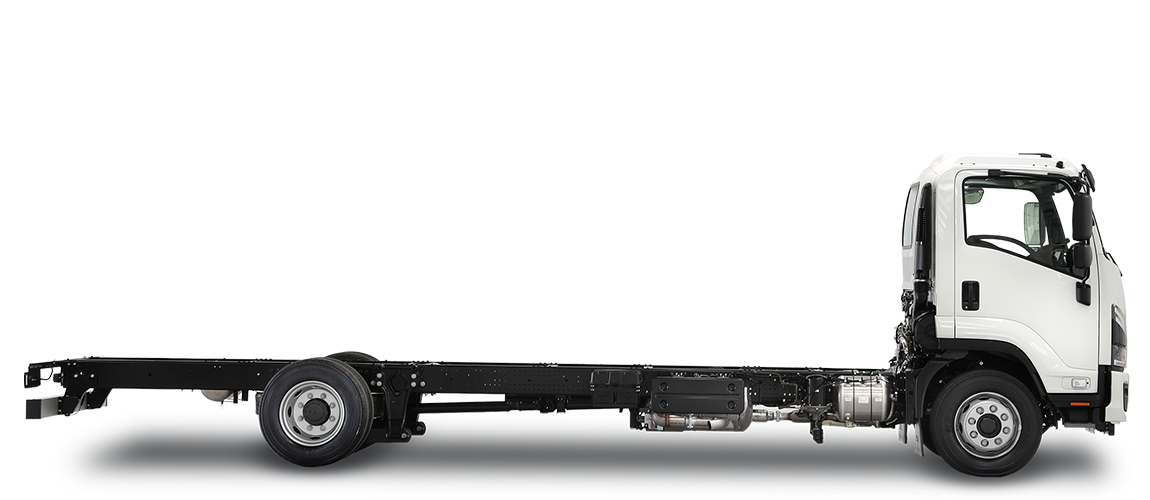

P Level F135 AIR Side 23

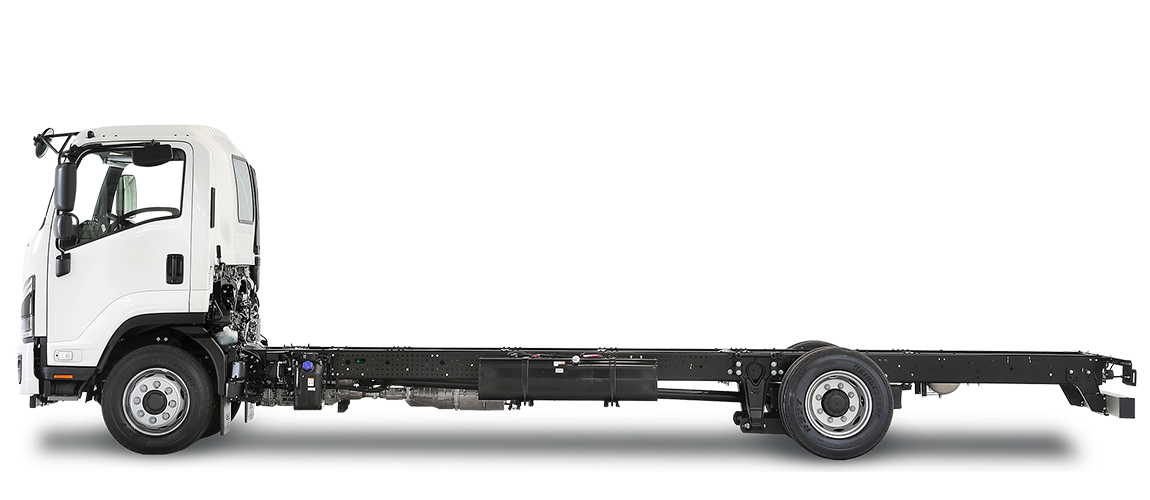

P Level F135 AIR Side 24

HOME / PRODUCTS

F135.240

4×2 Rigid Chassis Cab with Twin Rear Wheels and (Easy Shift) Automated Transmission & Rear Air Suspension

Weight

Gross Vehicle Weight (GVW): 13,500kg

Capacity

5193cc/240PS/177kW - 2400rpm

Engine

Isuzu 2-stage Turbo Intercooled OHC 4 Cylinder Diesel Engine

Transmission

Isuzu 6-Speed Fully Automated

Max Trailer Weight

Gross Train Weight (GTW): 17,000kg

Max Trailer Weight

Body & Payload Allowance*: ~ 9,128kg / ~9,163kg

F135.240 Isuzu - 13.5 tonne with fully automated gearbox & rear air suspension

Isuzu F-Series F135 outside driver side_144753

SPECIFICATION OVERVIEW

This versatile 13.5 tonne Chassis Cab features:

  • 4x2 Day Cab

  • Twin Rear Wheel Configuration

  • 6-Speed Fully Automated Gearbox (Easy Shift)

  • 5.2 litre 240PS Power Output

  • Front Suspension: Rigid Axle Multileaf Spring

  • Rear Suspension: 4-bag air suspension

  • Front Brakes: Drum

  • Rear Brakes: Drum

  • Max Towing Capacity: up to 3,500kg

  • Mass in Running Order*: ~ 4,337kg/ ~ 4,372kg

This specific model with air suspension offers 2 wheelbase options:

  • 4900mm with body and payload capacity* approximately 9,163kg

  • 5320mm with body and payload capacity* approximately 9,128kg

* Weights based on MIRO (Mass in Running Order). Tolerance +/- 5%

Isuzu F135 interior_133124

INTERIOR FEATURES

INTERIOR

Stylish interior with two colour seats, driver seat in black, the centre and passenger seats both in grey cloth fabric.

  • Isringhausen® heated & cooled driver air suspension seat

  • Dual passenger seat with foldable seat for extra storage

  • Ample storage for both driver and passenger

  • Overhead Locker Storage

  • Steering wheel mounted switches for optimal safety and convenience

  • Multi-function infotainment system with 9-inch touchscreen compatible with Apple CarPlay®, Android Auto®® and connects via Bluetooth®

  • Automatic Exhaust Brake

  • Air-conditioning

  • 7-inch Muti-Information Display (MID) to minimise eye movement and maximise driving safety

  • Height adjustable air suspension with remote control

  • Overhead LED work light

F-Series Interior_NS54

ADDITIONAL FEATURES

Additional specification includes the following:

  • Interior mirror with integrated reverse camera provides both standard view and reverse camera feed view

  • LED Lights - Headlamps, Daytime Running Lamps, Fog Lamps and Rear Lamps

  • Headlamp Washers

  • External heated and electrically adjustable rear view mirrors

  • Passive safety features include recessed wiper arms and integrated windscreen washers

  • Driver and passenger air bags

  • Entrance & Exit grab handles

  • Anti-slip steps

  • Integrated USB port

  • Full air brakes

Driver and Safety features as follows:

DRIVER & SAFETY FEATURES

The following driver and safety features are available on this F135.240, 13.5 tonne Isuzu chassis cab with fully automated gearbox. They are tailored to driver's needs and provide an optimal safety and assistance.

Images are used for illustrative purposes only.

Missacceleration Mitigation System (MAM)

Miss Acceleration Mitigation (MAM)

The Mis-acceleration Mitigation System monitors unintended acceleration in the area directly in front of the vehicle and prevents the driver from moving off when an obstacle is directly in front that could cause damage.

Forward Distance Warning (FDW)

Distance Warning System (DWS)

The Distance Warning System monitors the vehicle ahead and alerts the driver when the following distance is too close, helping to reduce the risk of a collision.

Forward Vehicle Start Notification (FVSN)

Forward Vehicle Start Notification (FVSN)

The Forward Vehicle Start Notification alerts the driver when the vehicle ahead begins to move, helping to improve awareness and reduce delays when pulling away.

Driver Drowsiness Awareness (DDW)

Driver Drowsiness and attention Warning (DDAW)

The Driver Drowsiness Warning system monitors driver behaviour and provides an alert when signs of fatigue or reduced attention are detected, helping to promote safer driving.

Missacceleration Mitigation System (MAM)

Moving Off Information System (MOIS)

The Moving Off Information System monitors the area directly in front of the vehicle and alerts the driver to vulnerable road users when moving off.

Intersection Warning

Intersection Warning

The Intersection Warning System monitors potential hazards at junctions and alerts the driver to vehicles or vulnerable road users who may be at risk of collision.

Intersection Blind Spot Warning

Blind Spot Information System (BSIS)

The Blind Spot Information System (BSIS) monitors the vehicle’s blind spots and alerts the driver to vulnerable road users who may be at risk during turning manoeuvres.

Traffic Sign Recognition and Intelligent Speed Assist

Traffic Sign Recognition (TSR) & Intelligent Speed Assist (ISA)

Traffic Sign Recognition and Intelligent Speed Assistance detects applicable speed limits and road signs, helping the driver remain aware of current restrictions and maintain an appropriate vehicle speed.

ITUK Tyre Pressure System_103004

Tyre Pressure Monitoring System (TPMS)

The Tyre Pressure Monitoring System (TPMS) continuously monitors tyre pressures and alerts the driver if a significant loss of pressure is detected, helping to maintain vehicle safety and efficiency.

Intersection AEBS

Intersection AEBS

Intersection AEBS detects potential collision risks at junctions and can automatically apply the brakes to help avoid or reduce the severity of a collision.

Automated Emergency Brake System (AEBS)

Full Adaptive Cruise Control (FACC)

Full Adaptive Cruise Control automatically adjusts the vehicle’s speed to maintain a safe distance from the vehicle ahead, helping to provide a safer, smoother and more comfortable driving experience.

F-Series susp control_105139

F-Series Air Suspension Control

F-Series Air Suspension Control

F-Series F135 grille_163726

F-Series LED lights

F-Series LED lights

F-Serries F135 wiper arms_31

F-Series wipers and washers

F-Series wipers and washers

IsuzuF135camera_133518

F-Series Detection System

F-Series Detection System
